affordable android cloud based remote management network box fanless 4k Advertising digital signage media player

FOB Reference Price:Get Latest Price
$100.00 - $180.00 / Piece | 5 Piece/Pieces (Min. Order)
Panel Size:
Other
Max Resolution:
3840 x 2160
Lead Time:
Quantity(Pieces) 1 - 1 2 - 10 11 - 50 >50
Est. Time(days) 2 5 9 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 1000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
vnopn
Model Number:
X7
Application:
Indoor
Input Voltage:
N/A
Viewing Angle:
N/A
Pixel Pitch:
N/A
Contrast Ratio:
N/A
Brightness:
N/A
Response Time:
N/A
Warranty:
1 year, 12Months
After-sales Service Provided:
Free spare parts, Online support
CPU:
RK3288 quad core Cortex-A17GPU Mail-T764
Operating System:
Linux
RAM:
1GB
SSD:
8G Flash
color:
black
Weight:
1.2KG
WIFI:
optional
Keywords:
digital signage player
Material:
Aluminum Alloy
Supply Ability
Supply Ability:
20000 Set/Sets per Month
Packaging & Delivery
Packaging Details
cartons
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 1 2 - 10 11 - 50 >50
Est. Time(days) 2 5 9 To be negotiated
Video Description

affordable android cloud based remote management network box fanless Advertising digital signage media player







3188 1.png3188 2.jpg





X7 Network Digital Signage Media player

X7 is a versatile, network digital signage system that delivers and display HD contents on digital displays, like TV. Designed for live TV signage deployment, the powerful X7 is a special alternative to X7 and X7 which is more cost-effective without expanded I/O ports. X7 comes bundled with cloud based digital signage software, for remotely and centrally managing digital signage screens, creating templates and playlists, playback scheduling...The web-based platform enables remote management via a web browser from any internet-enabled device, like iphone, ipad, laptop. The software supports rich contents like dynamic weather info, date&time, video, image, web pages, RSS, streaming, text ticker...The professional network digital signage system also allows for split-screen or full-screen layouts, reporting, multi-users and accounts management.





 Features & Benifits

  • Affordable and networkable digital signage system
  • Audio output for external audio system integration
  • User defined zoned layouts edit (Zones unlimited)
  • Playlists scheduling supported
  • Surveillance Camera Video Zone supported.
  • USB manual contents update supported
  • Auto power on and off settings supported
  • Reports, Multi-users and Multi-accounts management.
  • Image, video, web page, text ticker, streaming (rtsp), RSS, weather/date&time etc.

 rk3288 6.jpg

 rk3288 7.jpg



High performance.

X7 adopts quad-core A17  RK3188 solution and it is one of most powerful quad-core chips in the world.Comparing with ubiquitous single-core,dual-core,quad-core,octa-core solution, X7 features super octa-core performance and supports 4K*2K HD video in a variety of formats.



High stability.

To make sure the product stability,X7 android board features additional unique technology which can fully enables 7*24hours working .



High integration.

RK3288 board is integrated with gigabit ethernet, WiFi, blue-tooth, 15w power amplifier,TF card extension, built-in 3G / 4G module interface, HD-MI input, IR remote control, HD-MI output, LVDS, eDP, microphone, G-sensor, GPS etc.The super-thin board design also simplifies greatly the machine and make it more delicate .



High scalability.

5*USB ports,2* serial ports,1* I2C port and 8 extendable interfaces.







X7 Hardware Specification:

CPU

Rockchips RK3288 quad core Cortex-A17GPU Mail-T764

CPU frequency

1.8G

Memory

DDR3L 2G(Max support 4G)

Flash

NAND FLASH

Default is 8GB,support EMMC

(Optional 8GB/16G/32G)

Video

eDP port,LVDS port(single channel,6 bit double channel,8 bit, 10 bit double channel)

up to 3840*2160 resolution,support HD-MI7"-108" 4K*2K display,

Support double display with different information

Onboard backlight

Optional  3.3V /5V/12V

Touch screen

provide I2C port(support Multi point resistance touch,Multi point capacitive touch)

Support USB Multipoint infrared touch,Multi point capacitive touch,Multi point nano film touch,

Multi-point sound wave touch, Multi-point optical touch

Network

1* RJ45 1000M lan,support Ethernet.



Support wifi module,support 2.4G WiFi,

support Wi-Fi 802.11b/g/n protocol

Support Bluetooth, V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0

Support 3G module,

Support WCDMA,EVDO,CDMA,GSM

2G/3G Full frequency support 850/900/1800/1900MHz/2100MHz (Optional)

Support 4G module,

LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM(Optional)

GPS navigation

Built-in G PS module,Sensitivity:-159dBm  Receiving frequency: 1575.42MHz

Satellite channel:20

Channel positioning accuracy:<10m(Optional)

Image rotation

Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual rotation,

Support Gravity sensing automatic rotating screen function (optional)

HD-MI OUT

support 1080P HD-MI OUT

MIPI camera

Support 1300W Pixels MIPI Camera function (optional)

Real Time Clock

Built-in real-time clock powered battery, support timer switch machine

System watchdog

Support software watchdog

support USB Camera,Max support 800W Pixels

Port

Support infrared remote control

support HD-MI,4K*2K

support eDP port

support LVDS

4*USB HOST,1* USB OTG

1*COM pin,Support external serial device module (3 / 4G module, NFC module,Printer, card reader, scanner, ID card identification, etc.)

8* IO Detection mouth,Support human body infrared sensor

TF card slot,Max support 64GB

D class Large built-in speaker,6W*2 4R Support headphone interface output

Audio

Support Microphones

MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format

Video

Support 1080 p video decoding, youtube online video ( H.264, VP8,MAV,WMV, AVS, H.263,MPEG4)

Up to 4 k * 2 k output


Support JPG,BMP,PNG All sorts of image formats such as browsing and support play/rotate/slide zoom function

Power adapt

Input:AC100-240V.50-60HZ

Output:DC12V 2A

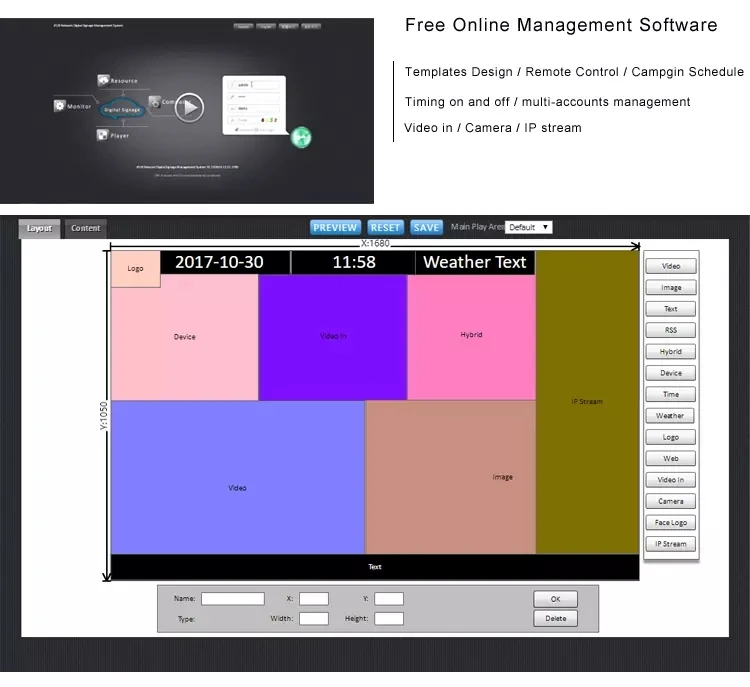

CMS SoftwareCMS.jpg


• Web-based Server (browser access login, server PC access not necessary )
• No Special server PC hardware requirements (Windows OS is a must)
• No license fee, no subscription fee
• Media players quantity unlimited
• Portrait display, Landscape display, Split-screen display
• Image, video, text ticker, web-page, RSS feeds, streaming(RTSP), Camera...
• Playlist scheduling, Multi-users management, multi-accounts management
• On premise (LAN) server mode and Cloud server mode
• If you are ambitious, offer Cloud service and contents service to your clients.PaymentSHAREVDI is a National High-tech Enterprise which own a strong ability of hardware design and software development for more than 10 years.
