Ddr3 ram supported LVDS custom computer intel i5 dual processor desktop pc mini itx intel thin client motherboard

  • >=10 Units
    $100.90
Model Number:
HKY
Lead Time:
Quantity(Units) 1 - 5 6 - 100 101 - 1000 >1000
Est. Time(days) 2 5 10 Negotiable
Customization:
Customized logo (Min. Order: 100 Units)
Customized packaging (Min. Order: 1000 Units)

More

Graphic customization (Min. Order: 1000 Units) Less
Samples:
$100.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Vnopn
Application:
Desktop
Graphics Card Type:
Integrated-need CPU support
Form Factor:
ITX
Hard Drive Interface:
SATA
Memory Type:
DDR3
Socket Type:
AM4
Chipset Manufacturer:
Intel
Ports:
Ethernet, SATA, USB 2.0, USB 3.0, VGA, WiFi
CPU Type:
Core I7/Core I5/Core I3/Pentium/Celeron
Chipset:
H61
Maximum Ram Capacity:
16GB
cpu:
Core i3 i5 i7 J1800 J1900
ram:
Optional
ssd:
Optional
os:
Win7/8/10/Linux
brand:
Vnopn
Interface:
USB+HD-MI+RJ45+RS232+MIC
Support Resolution:
1080P, 4k
Shell:
Plastic/Aluminum
Power:
5V 2A/12V 5A
WIFI:
802.11b/g/n
Products Status:
Stock
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
cartons
Port
shenzhen
Lead Time :
Quantity(Units) 1 - 5 6 - 100 101 - 1000 >1000
Est. Time(days) 2 5 10 To be negotiated
Video Description

Ddr3 ram supported LVDS custom computer intel i5 dual processor desktop pc mini itx intel thin client motherboard



 3865u motherboard 6.jpg3865u motherboard 7.jpg3865u motherboard 8.jpg

Specification

Processor

  • Intel Core i5-6200U Dual Core 2.3G Turbo Boost 2.8G
  • 3M Cache
  • Optional 3865u/i3 6Gen/i3 7Gen

Memory

  • 1*SO-DIMM Single Channel DDR3 Slot,Max.8 GB
  • Support 1.35V DDR3L 1600 MHz

Graphics

  • Intel HD Graphics 520
  • 1*HD-MI 1.4a,Max.Resolution 4096*2304
  • 1*VGA,Max.Resolution 1920*1200
  • 1*Dual CH 24bit LVDS,Max.Resolution 1920*1080

AUDIO

  • Realtel ALC662 HD Audio Controller
  • Supports High Definition Audio
  • Supports 2/4/5.1-CH(Via HD-MI)

LAN

  • Realtek RTL8111F
  • 10/100/1000 Base-Tx GBe Compatible

Expansion

  • 1*M.2 M Key Slot
  • 1*M.2 E Key Slot

USB



  • 4*USB 3.0 Ports(2 rear,2 via header)
  • 4*USB 2.0 Ports(via headers)

On Board I/O

  • 2*M.2 Slot
  • 1*F_Panel
  • 1*CPU_FAN
  • 1*SYS_FAN
  • 1*RTC
  • 2*SATA _PWR
  • 2*SATA
  • 1*LVDS
  • 1*LVDS_PWR
  • 1*USB3.0 Header
  • 2*USB2.0 Header
  • 1*INVERT
  • 1*BKCL

Storage

  • 2*SATA 6Gb/s,Support 2.5’ SSD/HDD
  • 1*M.2 M Key,Supports SATA 6Gb/s&PCIE X4 M.2 SSD

Rear I/O



  • 1*DC_IN
  • 1*LAN
  • 1*VGA
  • 2*USB3.0
  • 1*HD-MI
  • 1*HP_OUT
  • 1*MIC_IN

BIOS

  • AMl uEFI BIOS,64Mbit SPI Flash ROM

Adapter

  • 12V/5A

OS Information

  • Supports Windows 8.1/8 32-bit/64-bit
  • Supports Windows 7 32-bit/64-bit
  • Supports Windows ES 7/8
  • Supports Windows10 32bit/64bit
  • Supports Linux

Operating
Temperature

  • -15℃-60℃

Operating Humidity

  • 0%-95% Relative Humidity,Non-condensing

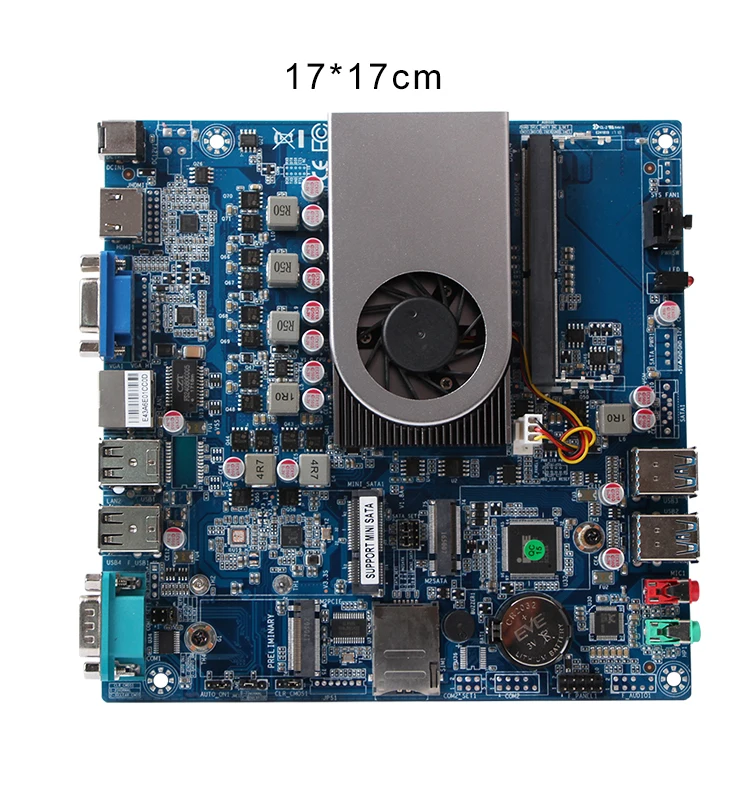

Form Factor

  • Based on Thin Mini-ITX form factor
  • 170mm*170mm











Our Server

1 (3)



Our Company



1.We can provide OEM/ODM services.
2.We can sell one sample for your test.
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.



Sharevdi Technology Company Limited
is a professional manufacturer of thin client, mini-itx motherboard industrial computer, all in one pc etc .
Our products are widely used in industrial automation, digital signage, ATM, network security etc.
We has established cooperation with lots of enterprises, rely on our strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad.
Our OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.1011






FAQ



Q1. Can I get a sample for testing?

Re: Yes you can. After paid sample and shipping cost, we will deliver it according to your request.

Q2. What's your MOQ?

Re: MOQ 1 set.

Q3. Do you ever export to some country?

Re: Yes, all over the world, such as America, UK, German, Finland, South Africa, India, Canada, Austrilia, South Korea etc.

Q4. This is my first time buying computers, could you provide some advice?

Re: Yes, it's our pleasure. Different use have different options, pls contact us to get more details

Q5. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?

Re: Yes we can. The charges for OEM service depends on the different level of customize. Pls contact us to get more information, thanks.

Q6. Can you print my logo on the mini computer and customize logo on boot-screen?

Re: Yes, we can silkscreen logo on computer case, and customize logo on boot-sreen.

Q7. How can I choose the specification?

Re: This is barebone price (no ram/hard disk/wifi/bt), the capacity of ram & hard disk and WIFI/BT can be changed according to your requests, just only price difference, pls contact us to get more information, thanks.

Q8. Can your device work 24h*7 days? And what about the temperature range it can operate in?

Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.

Q9. Can this computer support 2 monitors?

Re: Yes, it support 2 monitors display via 1 hd-mi and 1 VGA.

Q10. What is the lead time of your products?

Re: Sample order within 1~3 business days .



Bulk order within 3~15 business days ( depends on order qty)
